Radio Frequency HF PCB Prototype Board 2 Layer White Solder Mask

Shenzhen Xinchenger Electronic Co.,Ltd

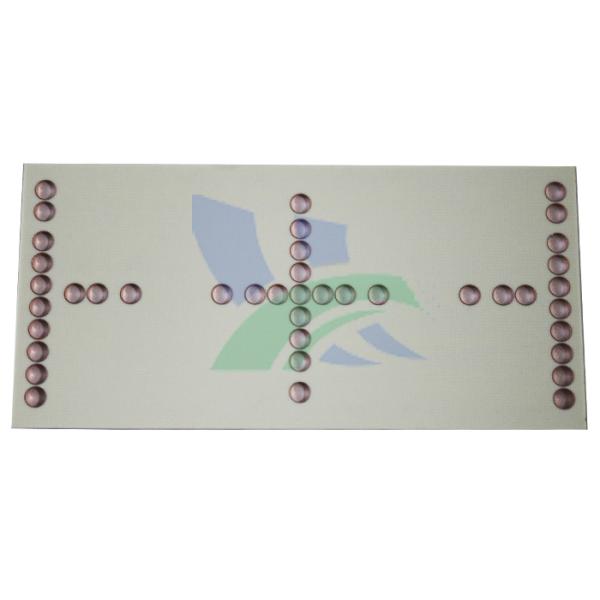

Radio Frequency HF PCB Prototype Board 2 Layer White Solder Mask

Brand Name : XCE

Model Number : XCEP

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Material : Rogers 4350B

Layer : 2

Color : White

Min line space : 5mil

Min line width : 5mil

Copper thickness : 1OZ

Contact Now

Radio Frequency HF PCB Prototype Board 2 Layer White Solder Mask

Quick:

Origin:China Material: Rogers 4350B
Special: Vias plated Layer:4
Delivery: 7days Thickness:0.3

Specification:


Board size: 11*8 cm

Board thickness: 0.3mm

Copper foil: 35UM

Surface: Immersion gold

Parameter:

F4B F4B 0.38 2.2
F4B 0.55 2.23
F4B 0.225,0.3,0.5,08,1,1.2,1.5,2,2.5,3.0 2.65
F4Bk 0.8,1.5 2.65
F4B 0.8 3.5
FE=F4BM 1 2.2
Rogers RO4003 0.254 0.508,0.813,1.524 3.38
RO4350 0.254 0.508,0.762,1.524 3.5
RO5880 0.254.0.508.0.762 2.2
RO3003 0.127,0.508,0.762,1.524 3
RO3010 0.635 10.2
RO3206 0.635MM 10.2
R03035 0.508MM 3.5
RO6010 0.635MM, 1,27MM 10.2
TACONIC TLX-8.TLX-9 0.508. 0.762 2.45-2.65
TLC-32 0.254,0.508,0.762 3.35
TLY-5 0.254,0.508.0.8, 2.2
RF-60A 0.254.0.508.0.762 6.15
CER-10 0.254.0.508.0.762 10
RF-30 0.254.0.508.0.762 3
TLA-35 0.8 3.2
ARLON AD255C06099C 1.5 2.55
MCG0300CG 0.8 3.7
AD0300C 0.8 3
AD255C03099C 0.8 2.55
AD255C04099C 1 2.55
DLC220 1 2.2

Choosing high frequency pcb material :

Selecting a circuit material for a high-frequency printed-circuit board(pcb) is generally a trade-off,often between price and performance.However,PCB materials are also selected by two key factors: how well they meet the needs of an end-use application and what kind of efforts is required to fabricate a desired circuit with a particular material.
These two factors may not mesh:one material may be well suited for a particular application but may pose challenges in terms of circuit fabrication,and vice verse.There is no foolproof,step by step procedure for selecting a PCB material.But by relying on some tangible guildelines designed to evaluate a material in terms of its suitability for circuit fabrication and for meeting the requirements of an application,the process of selecting a PCB for a particaular application can be simplied.

Application:

Telecom:transmitter.receiver.oscillator.antenna
Satellite receiver
Global location system,amplifier.satellite telecom
Microwave transmission
Automobile telephone
Measure apparatus.LSI inspector.analyser.signal oscillator
High frequency telecom.high speed transmission high security.

Radio Frequency HF PCB Prototype Board 2 Layer White Solder Mask
